INTRODUCTION
The SV8500 is a premier IP Communications server from NEC’sUNIVERGE®360 series of models.It  supports  voice,  unifiedcommunications and  mobility  solutions  for  tens  of thousands  of  users.  Designed to easily andefficiently  scale,  it  meets  the  needs  of  the  largest  enterprises,  supporting  up  to 192,000 ports in a networked environment. It is implemented as a 3RU server, but may also include up to 16 8RU PIR’s. The server is loaded with the main, feature pack, and any system software options. It is the Telephony Processor for the system handling all activities associated with IP Peer-to-Peer communications as well as the traditional TDM telephones. It controls all of the “Protocol Handling” functions of the IP terminals and trunks as well as manages the communications between SIP devices/terminals and IP Peer-to-Peer or TDM devices.

The server functions on a Linux Operating System Platform (O/S) wherein IP based Telephony interconnection is possible through a true client/server IP PBX design.Utilizing  the  Linux  platform  leverages  from  the  flexibility  of operating  in  a  redundancy  option  configuration,  to  provide  a  reliable  connection  for  IP terminals, gateways and PC soft-phones. NEC  maintains  an  exceptionally  high  MTBF  (Mean  Time  Between  Failures)  with  this platform  by  incorporating  flash  memory  cards  as  opposed  to  hard  disks  as  used  in  traditional servers.

The solution consists of the following items:

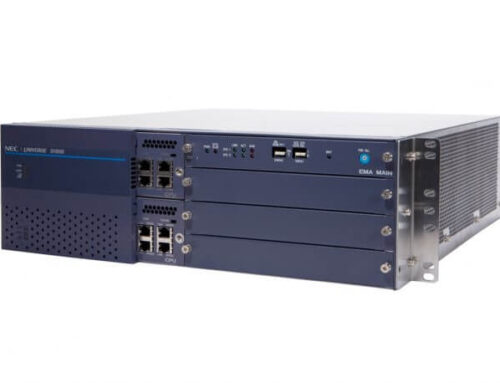

  • The SV8500 as a 19” Rack mountable 3RU server.  This hardware  platform  utilizes an  industry  standard  Intel  processor  and  is  powered  directly  from  AC100-240-volts or  DC-48-volts.  This server controls  the  features  and  licensing  options  for  the system  in  addition  to  the  Processor  for  managing  communications  between  SIPdevices, TDM devices and  extended SIP terminals as IP Peer-to-Peer.
  • A 19” rack mounted expansionchassis is available if needed.
  • In  addition  to  the servers,  a  range  of  distributed  IP  media  converters  and gateways  is  also  available  to  cater  for  access  to  the  traditional  services  at  the  host site or at remote locations.

At  the  heart  of  the  system  is  an  IP-PBX  based  on  a true  client/server  design  platform  that  does  not  require  circuit  switched  common  equipment hardware for support of any analogue stations or trunk circuit requirements.A generic full  software  feature  package  comparable  to  those  previously  available  only with traditional circuit switched PBX systems are provided to customers. Key features that typically all customer look for such as; survivability, redundancy,reliability, an extensive range of telephony features, and terminal options are provided.

SCALABILITY

The server has primarily been designed for customers who require a significant percentage of their telephony equipment to be IP based for desktop and/or wireless. It  is  very  easy  to  scale  due  to  the  simplicity  of  its  build  rules  and  licenses  and offers a per port growth path for its IP connectivity, with a maximum capacity in a standalone configuration of 6,144 ports. However, with the addition of the optional NEC Fusion software (FCCS) a solution can be expanded for up to 192,000 ports in a feature transparent cluster. A high density gateway chassis TDM (PIR) can be deployed if required which supports up to a maximum of 384 ports.

SURVIVABILITY

Multiple levels of solution survivability are offered by the server.An alternative registration server called a SR-MGC is implemented as the lower level of survivability. One or more SR-MGC servers can be deployed remotely from the host on a WAN.

Their implementation location would be dependent on redundancy levels required and the overall network design. IP  Terminals  and  IP  Gateways  support  multiple  registration  options  and  they  can  take advantage of one or many SR-MGC’s should the network to the host be lost.

Hot standby host servers are at the very top level. In case the primary server fails, a hot standby system providesfull service tothe desktop IP terminals, IP devices, TDM high densityGateways, and others by mirroring the host.

LEVERAGING

NEC  has  a  strong  focus  on  supporting  customers  who  have  previously  purchased  their products and consequently offer various options for backward compatibility.

  • Regular  software  releases  available which  allows customers  to  gain  access  to  all  of  the  latest  software  version  features  by implementing a software upgrade.
  • Most  packages  from  the  large  IMX, ICS  and  IPX  NEAX  models  of  PBX  are still compatible with the newer high density TDM chassis (PIR).
  • Supports  CCIS  links  to  any  other  existing  NEAX  PBX  systems  that support  CCIS  Trunking.

SUPPORTED OPTIONS

A  wide  and  varied  range  of  integrated  communications software  options,  features,  terminals  and  devices  are supported.  This provides customers with the capability to build extremely flexible and robust configurations and with the strength to scale it to suit their immediate and future business needs.

SYSTEM SOFTWARE UPGRADES

Major software versions are being released periodically. These  software versions only  required  for users  looking  at  utilizing  the  additional  and  more  recently incorporated  features.  Customers can skip several software releases but are still able to upgrade to the very latest software level if they have the appropriate hardware platform.

The  system  software  can  be  loaded  from  a  CD  onto  the  system  flash  card.  The new  software  version is then  updated  with  a  system  reset which can  be conducted  at  a  time  most  convenient  for  the  customer.  A CPU reset for a typical system would  normally  take  between  10  and  40  seconds  before  the  system  is  back  online. The reset time is still less than 2 minutes even for a very large system implementation.

INTEGRAL HANDSET SUPPORT

Connection of UNIVERGE desktop IP terminals that use Extended SIP signaling are allowed. From a user perspective, the desktop IP terminal will operate similarly to that of a traditional desktop digital terminal.  This can dramatically reduce implementation costs due to the limited requirement for staff training.Hot-desking  and  individual  operator  security  can  be  implemented  simply  by  using  thedesktop IP extension log-on, log-off capability. Significant  network  infrastructure  savings  can  also  be  achieved  by  utilizing  the  additional  PC switch port connection available on the advanced UNIVERGE desktop IP extensions.

In supporting mobile workforces, Voice over WLAN handsets utilizing Session Initiation Protocols are supported. The desktop IP extension can be configured with up to four alternate server addresses  in  order  to  cover  WAN  failure  or  loss  of  internet  connectivity.
